Enduro is a high-performance cutting solution that is also cost-effective. Through its precise motion, ergonomic design and compact footprint, Enduro brings speed and productivity to all types of fabricators.
Processes
Plate cutting
Marking

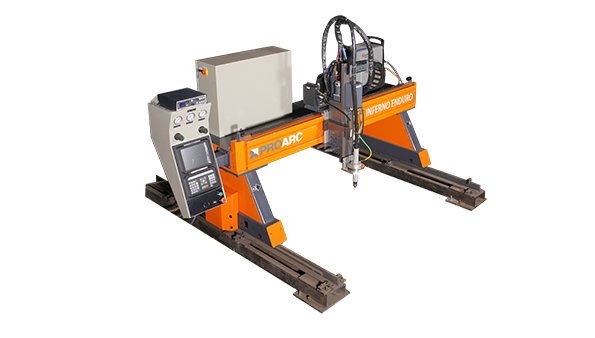

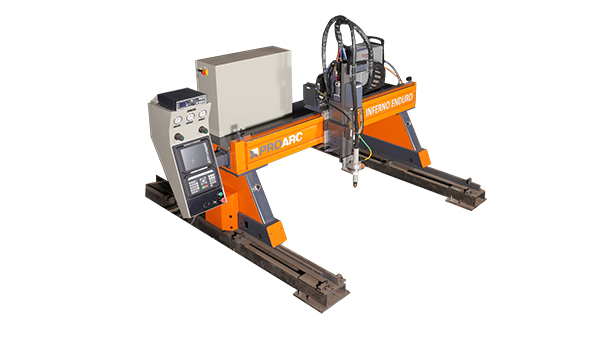

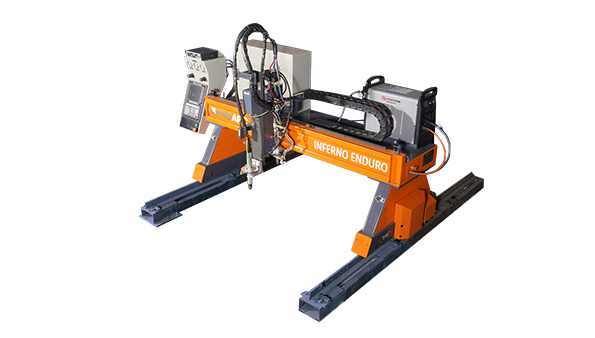

Inferno - Enduro
Moderate gantry design supported on elevator rails
Built with sturdy components to ensure high reliability
Roller guide on Aluminium extrusion mounted on the gantry for precise motion of torch stations
Spur racks and pinions for precise motion
Power transmission along X & Y axes through digital AC servomotors and low backlash planetary gearboxes
Dual synchronized servo motors for gantry motion along longitudinal direction
Ball screw slides for precise vertical motion of torches
Auto plate alignment for reduced setup time
Collision protection for plasma heads
Enhanced safety features
Model
Enduro
Processes
Oxy-fuel and/or Plasma
Application
Light to medium duty cutting, profile cutting, air plasma cutting
Machine Structure
Gantry simply supported at both ends by elevator rails
Working widths
1,500 mm - 3,000 mm
Maximum Working length
16,000 mm
Lifter Stroke
100 mm
Cutting Capacity:
Oxy-fuel
6 mm - 100 mm
Plasma
0.5 mm – 50 mm MS
1 mm – 40 mm SS
1 mm – 40 mm Al
Cutting thickness depends on the plasma system offered
Maximum plasma torches
1
Maximum oxy-fuel torches
2
Maximum Positioning Speed
12,000 mm/min
X & Y axes motion
Spur Rack and pinion
Z axis motion
Ball screw
Guiding mechanism
Guide bar roller system on cross axis & cam follower arrangement for long axis with elevator rails.
Cutting accuracy and dimensional tolerance
ISO 9013 class 2
Operator HMI
Keypad based HMI, switches on operator panel
CNC Controller
ARM-based controller
* The specifications are subject to change on the basis of improvements made in our products.
Certain customizations are possible in the above machines.
Inferno - Enduro
