INFERNO - SLASH

The epitome of flexibility and dependability

Inferno - Slash

Inferno - Slash

Inferno - Slash

The epitome of flexibility and dependability

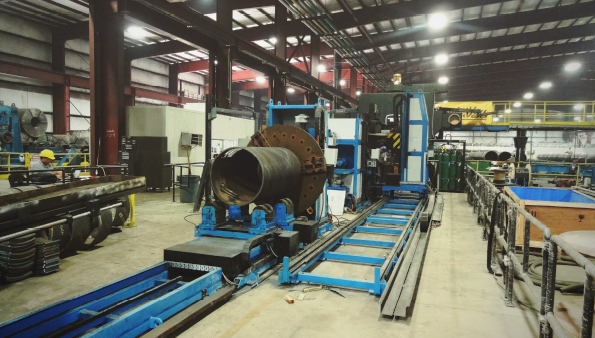

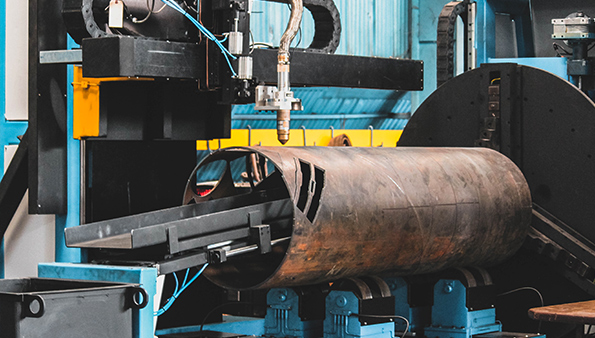

The Slash cutting machine is designed for processing high volumes of circular pipes and square and rectangular tubes, mostly for structural fabrication. The CNC controller and nesting software have standard shape libraries for achieving a variety of cuts, miters, copes, saddles, hillsides and more. Its robust frame has been engineered to deliver years of unmatched performance and high accuracies.

Processes
Pipe Cutting
Pipe Beveling

Inferno - Slash

  • Head stock with self-centring chuck for gripping and rotating the pipes/ tubes
  • Built with sturdy components to ensure high reliability
  • Option of stationary headstock and moving cutting carriage or stationary cutting carriage and moving headstock
  • Cutting achieved through interpolation of rotary axis of chuck, axial motion of chuck/ cutting carriage, vertical motion of torch
  • Power transmission through digital AC servomotors and low backlash planetary gearboxes
  • Option of manual/ pneumatic/ hydraulic clamping of jaws
  • Ball screw slides for precise vertical motion of torches
  • Collision protection for plasma heads
  • Enhanced safety features

Model Slash
Processes Oxy-Fuel / Plasma
Application Pipe / square and rectangular tube cutting

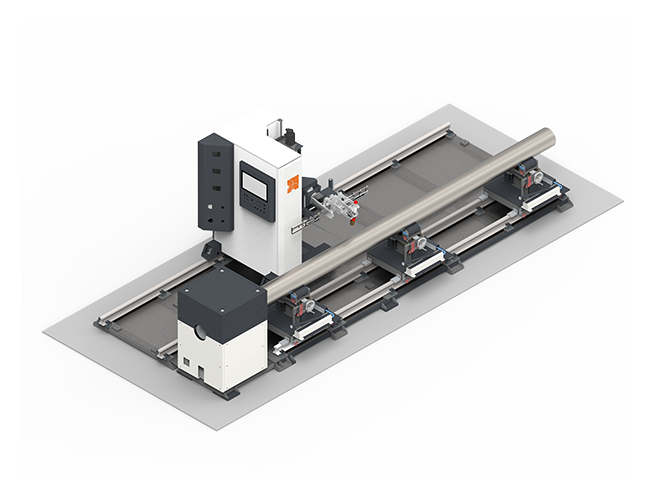

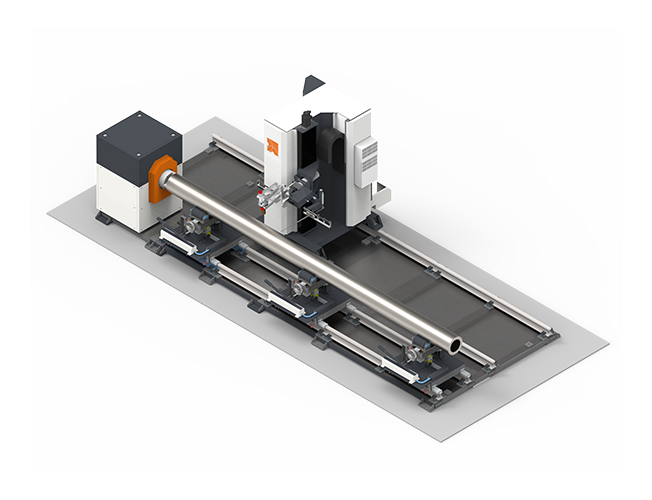

Machine Structure Headstock with chuck, idlers for supporting pipe/ tube and cutting carriage
Pipe diameters ø 50 mm – 300 mm
ø 50 mm – 500 mm
Max. Square Tube sizes 50 mm to 200 mm sq.
75 mm to 300 mm sq.
Pipe / Tube length 6,000 mm
12,000 mm
Wall thickness 2 to 30 mm
Maximum pipe / tube weight 2,000 kg
Maximum cutting speed on pie 4,000 mm/min
Chuck Clamping Manual / Pneumatic / Hydraulic
* The specifications are subject to change on the basis of improvements made in our products.
Certain customizations are possible in the above machines.
