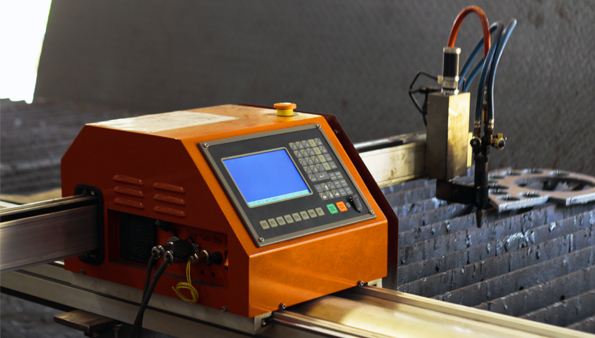

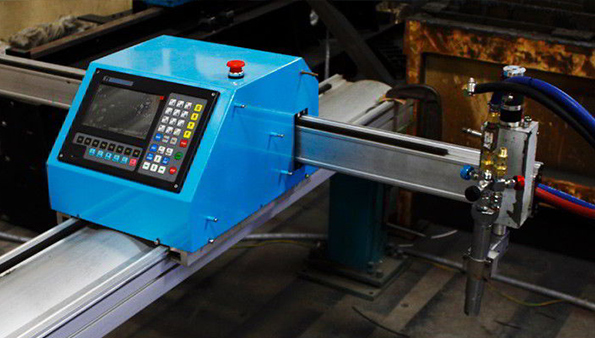

Uno is an economical solution for fabricators across all industries. A portable cantilever machine useful for oxyfuel and plasma cutting processes, ergonomically designed for optimum space utilization. Uno is ideal for businesses looking to transition to cutting automation.
| Model | Uno | |
|---|---|---|
| Processes | Oxy-fuel and/or Plasma | |
| Application | Light duty cutting, low volumes of profile cutting requirement | |
| Machine Structure | Cantilever aluminium extrusion moving over aluminium track | |
| Working widths | 1500 mm | |
| Maximum Working length | 6000 mm | |
| Cutting Capacity: | ||
| Oxy-fuel | 6 mm - 60 mm | |
| Plasma | 0.5 mm – 25 mm MS 1 mm – 20 mm SS 1 mm – 20 mm Al Cutting thickness depends on the plasma system offered | |
| Maximum plasma torches | 1 | |
| Maximum oxy-fuel torches | 1 | |
| Maximum Positioning Speed | 6,000 mm/min | |
| X & Y axes motion | Spur Rack and pinion | |
| Z axis motion | Lead screw | |
| Guiding mechanism | Aluminium cantilever arm slides on the aluminium track | |
| Cutting accuracy and dimensional tolerance | ISO 9013 class 2 | |
| Operator HMI | Keypad based HMI | |
| CNC Controller | ARM-based controller | |
