LUMOS - FURY

CNC Laser Cutting Machine

High - Speed CNC Fibre Laser Cutting Machine

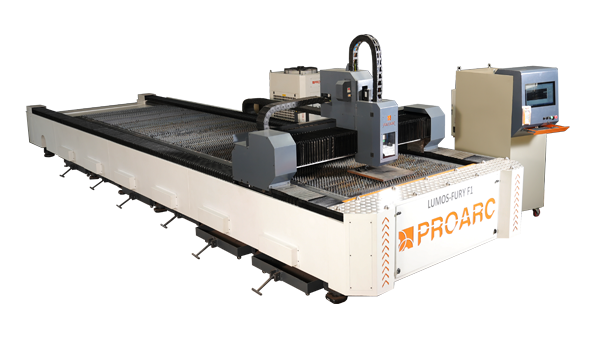

ProArc Lumos Fury F1 CNC fibre laser cutting machine for industrial sheet metal cutting

Lumos - Fury F1

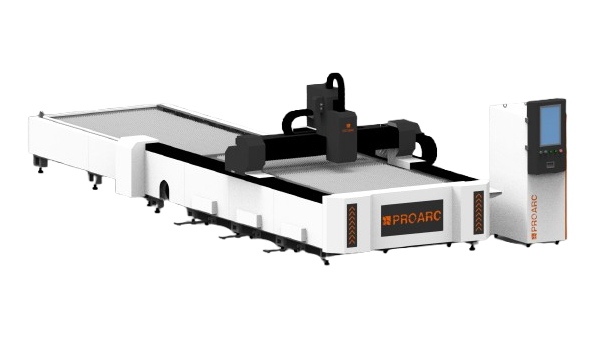

ProArc Lumos Fury F2 fibre laser cutting machine with shuttle table for high productivity cutting

Lumos - Fury F2

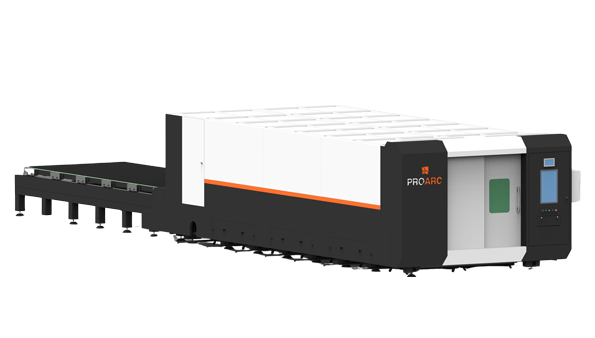

ProArc Lumos Fury F3 enclosed CNC fibre laser cutting machine for precision fabrication

Lumos - Fury F3

ProArc Lumos Fury F1P CNC fibre laser tube cutting machine for pipe and profile processing

Lumos - Fury F1P

ProArc Lumos Fury F3P fibre laser cutting machine with tube cutting system for industrial fabrication

Lumos - Fury F3P

Ultimate precision for higher thicknesses and speeds

The Fury series has a heavy-duty & high precision welded machine frame to ensure utmost stability & dampen any vibration at ultra-high cutting speeds. Its powerful motion control, zonal ventilation system, rapid heat dissipation & intelligent CNC system contributes to high performance, long life & exceptional accuracy at high speeds

Processes
Plate cutting
Marking
Pipe Cutting

Lumos - Fury Series

Variants

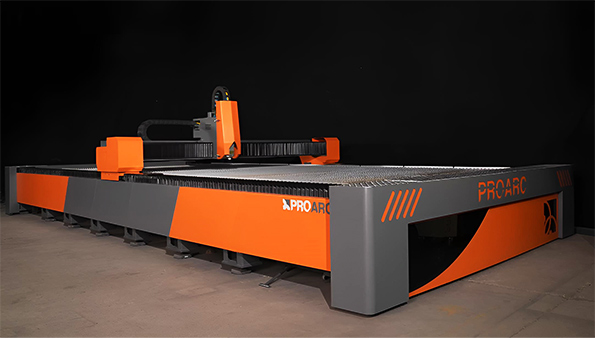

Fury F1 - Single bed design, open machine body

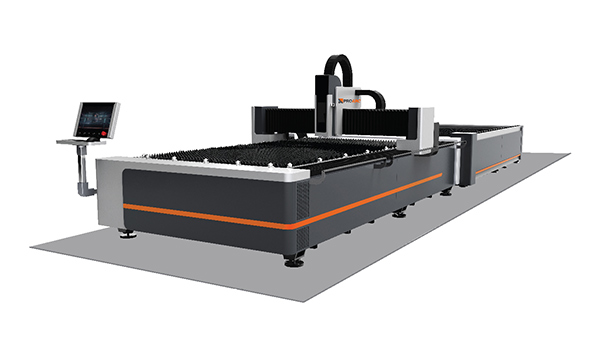

Fury F2 - Shuttle table, open machine body

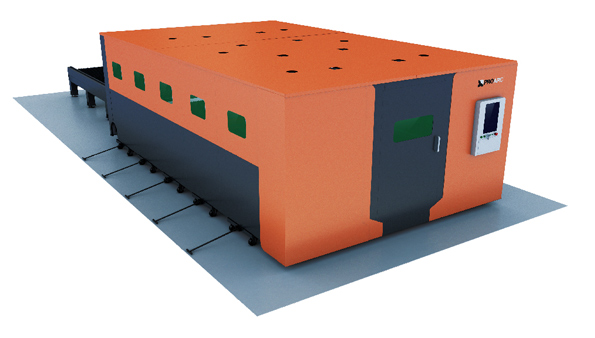

Fury F3 - Shuttle table, enclosed machine body

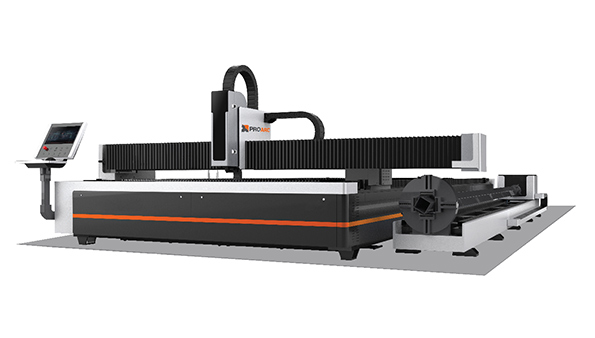

Fury F1P - Single bed design, open machine body, add-on tube cutting arrangement

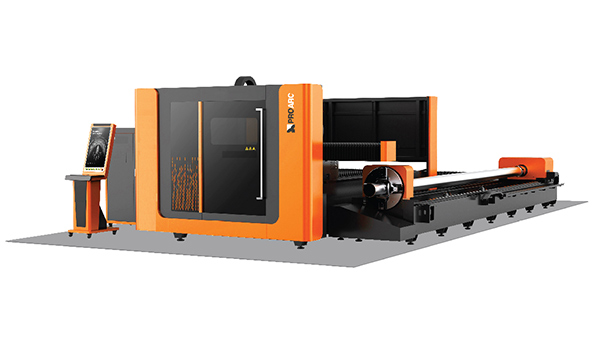

Fury F3P - Shuttle table, open machine body, add-on tube cutting arrangement

  • Rigid, reliable machine with efficient cooling, lubrication & dust-removal system for ultimate accuracy
  • Best in class accuracy and productivity
  • User friendly graphical user interface
  • Drawing and nesting of shapes on the CNC controller itself
  • Inbuilt fume extraction system
  • Aerodynamic aluminium gantry for quick acceleration and deceleration
  • Auto sheet alignment
  • Compatibility with laser automation line

Fury F1, F2, F3 & F1P
Model Fury 3015 Fury 4020 Fury 6015 Fury 6520 Fury 6525 Fury 8025
Working width 1,525 mm 2,025 mm 1,525 mm 2,025 mm 2,525 mm 2,525 mm
Working length 3,050 mm 4,050 mm 6,050 mm 6,550 mm 6,550 mm 8,050 mm
Positioning accuracy ± 0.03 mm/m
Repeatability ± 0.02 mm/m
Rapid speed 100 - 120 m/min
Acceleration 1G
Shuttle table exchange time 10s 12s 15s 18s 20s 22s
Fury F3P
Model Fury F3P 3015 Fury F3P 6015 Fury F3P 6520
Working width 1,525 mm 1,525 mm 2,025 mm
Working length 3,050 mm 6,050 mm 6,550 mm
Positioning accuracy ± 0.03 mm/m
Repeatability ± 0.02 mm/m
Rapid speed 100 - 120 m/min
Acceleration 1G
Pipe Diameter ⌀ 20 - 160 mm ⌀ 20 - 160 mm ⌀ 20 - 220 mm
Shuttle table exchange time 10s 15s 18s
* The specifications are subject to change on the basis of improvements made in our products.
Certain customizations are possible in the above machines.

Lumos - Fury F1

Lumos - Fury F2

Lumos - Fury F3

Lumos - Fury F1P

Lumos - Fury F3P
